Ballscrew Actuator Selection software
Selection & Calculation
Language
日本語
English
中文
Korea
● Simplified Selection
Determine a service life calculation from simplified input terms
If the product to be used is undetermined, choose a product from here and calculate service life
1. Series Selection
(Select All that Apply)
SE
Repeated Positioning Accuracy[mm]
±0.003 , ±0.005 , ±0.010
SG
Repeated Positioning Accuracy[mm]
±0.001 , ±0.003
2. Selection of Conditions of Use
Horizontal
Vertical
Wall-mounted
3. Input of Operating Conditions
Travel Time[sec]
Mass of Work[kg]
Stroke[mm]
Select from the above
Reset Conditions
● Simplified Selection Result
Model Number
Selection Criteria
Conditions of Use
Horizontal
Travel Time[sec]
0
Mass of Work[kg]
0
Stroke [mm]
0.0
Specification
Series
Size [mm]
0
Ball Screw Lead [mm]
0
Guide Rail Length [mm]
0
Maximum Permissible Stroke [mm]
0.0
Maximum Permissible Speed [mm/sec]
0
Service Life[hour]
Custom Option
Please select motor bracket shape, and indicate if optional features have been selected for covers, sensors, surface treatment, grease, and/ or dowel pin holes.
Motor Bracket Shape
None
Motor Position
None
Cover
None
Sensor
None
Surface Treatment
None
Grease
None
Dowel Pin Hole
None
Show Result
Proceed to Detailed Calculation
● Detailed Service Life Calculation
Determine a service life calculation from detailed input terms
If the product to be used is undetermined, choose a product from here and calculate service life
Please select the product`s model number
Series
Please Select
SE
SG
Size
Please Select
Lead
Please Select
Block Type
Please Select
Rail Length
Please Select
Performance Grade
None
Motor Bracket Shape
None
Motor Position
None
Cover
None
Sensor
None
Surface Treatment
None
Grease
None
Dowel Pin Hole
None
Reset Model Number
Model Number
Conditions of Use
Horizontal
Vertical
Wall-mounted
Mass of Work[kg]
Position of Center of Gravity
X[mm]
Y[mm]
Z[mm]
Load Factor
Under these conditions, the maximum
speed will not be reached.
0
0
0
0
0
0

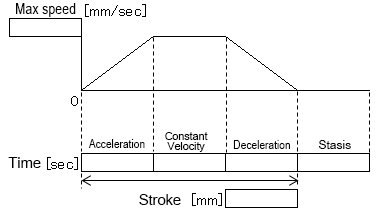

Stroke[mm]
Maximum
0.0
[mm]
Speed[mm/sec]
Maximum
0
[mm/sec]
Acceleration[sec]
Constant Velocity[sec]
Deceleration[sec]
Stoppage Time[sec]
Moment[N·m]
MpL[N·m]
MyL[N·m]
MrL[N·m]
Static Permissible Moment
0.00
0.00
0.00
Moment
0.00
0.00
0.00
Execute Calculation
Reset Operating Conditions
Actuator service life is determined by the smallest value resulting from calculations of the ball screw, guide, and bearing.
Ball Screw
Guide
Bearing
Actuator
Service Life time [hour]
0
0
0
0
Specifications and Results
This program selects and calculates based on input terms and the resulting selections and service life results are theoretical values.
Values are not guarenteed under the conditions of the customer's specifications and operating environment.Please give sufficient consideration when finalizing designs.
ver.1.10
